Industrial Laminates

Get a Quote for Industrial Laminates at Piedmont Plastics

Industrial laminates, also known as thermoset laminates or thermoset composite laminates, provide a versatile combination of mechanical strength, electrical insulating properties, dimensional stability, and durability. Their performance varies significantly by resin system, reinforcement, and grade, making them suitable for applications ranging from electrical insulation and power distribution equipment to machined components, structural supports, and industrial equipment.

Available grades include epoxy, melamine, silicone, polyester, and phenolic laminates, allowing engineers, fabricators, and purchasing professionals to select materials based on the demands of their application. Common NEMA grades include G10, FR4, GPO-3, X, XX, XXX, C, CE, L, and LE.

Piedmont Plastics supplies industrial laminate sheet and rod in a variety of grades to support diverse performance and fabrication requirements. Our team can help you identify options based on your application's mechanical, electrical, thermal, environmental, and dimensional requirements. Contact Piedmont Plastics today to request a quote for industrial laminates.

Available Industrial Laminate Products

Industrial laminates are available in several material families, each offering different performance characteristics.

An Expert is just around the corner.

With over 100 years of combined product knowledge and industry experience, we are confident our plastics experts can help you find a solution for your application.

Talk to an expert

First Name

Last Name

Sign me up for special deals and company news.

Phone

Zip/Postal Code

Message

Key Features of Industrial Laminates

Because industrial laminates encompass several resin systems and reinforcement types, performance varies considerably between grades. As a category, thermoset laminates can provide combinations of the following characteristics:

Electrical insulation: Many grades provide strong dielectric properties for electrical and power distribution applications.
Mechanical strength: Reinforced constructions can provide strength and rigidity for structural and mechanical components.
Dimensional stability: Thermoset construction helps many grades maintain their shape under mechanical and environmental stresses.
Temperature performance: Certain grades are engineered to retain useful properties at elevated operating temperatures.
Moisture resistance: Selected laminate grades maintain electrical and mechanical performance in humid or moisture-exposed environments.
Wear resistance: Selected phenolic and other laminate grades provide useful wear characteristics for mechanical applications.
Flame-resistant options: Specific grades, including FR-designated and selected polyester materials, are available when flame performance is required.

Benefits and Advantages

Industrial laminates perform both insulating and mechanical functions within the same component. With numerous NEMA grades available, users can select a material suited to specific operating conditions rather than over-specifying performance that the application does not require.

Request a Quote

Common Applications

Industrial laminates serve electrical, power generation, manufacturing, fabrication, and other industrial markets. The appropriate material depends on the application's mechanical, electrical, thermal, and environmental requirements.

Electrical insulation: Insulating components used to separate conductive parts and support electrical systems.
Switchgear and power distribution equipment: Barriers, supports, mounting components, and other insulating parts.

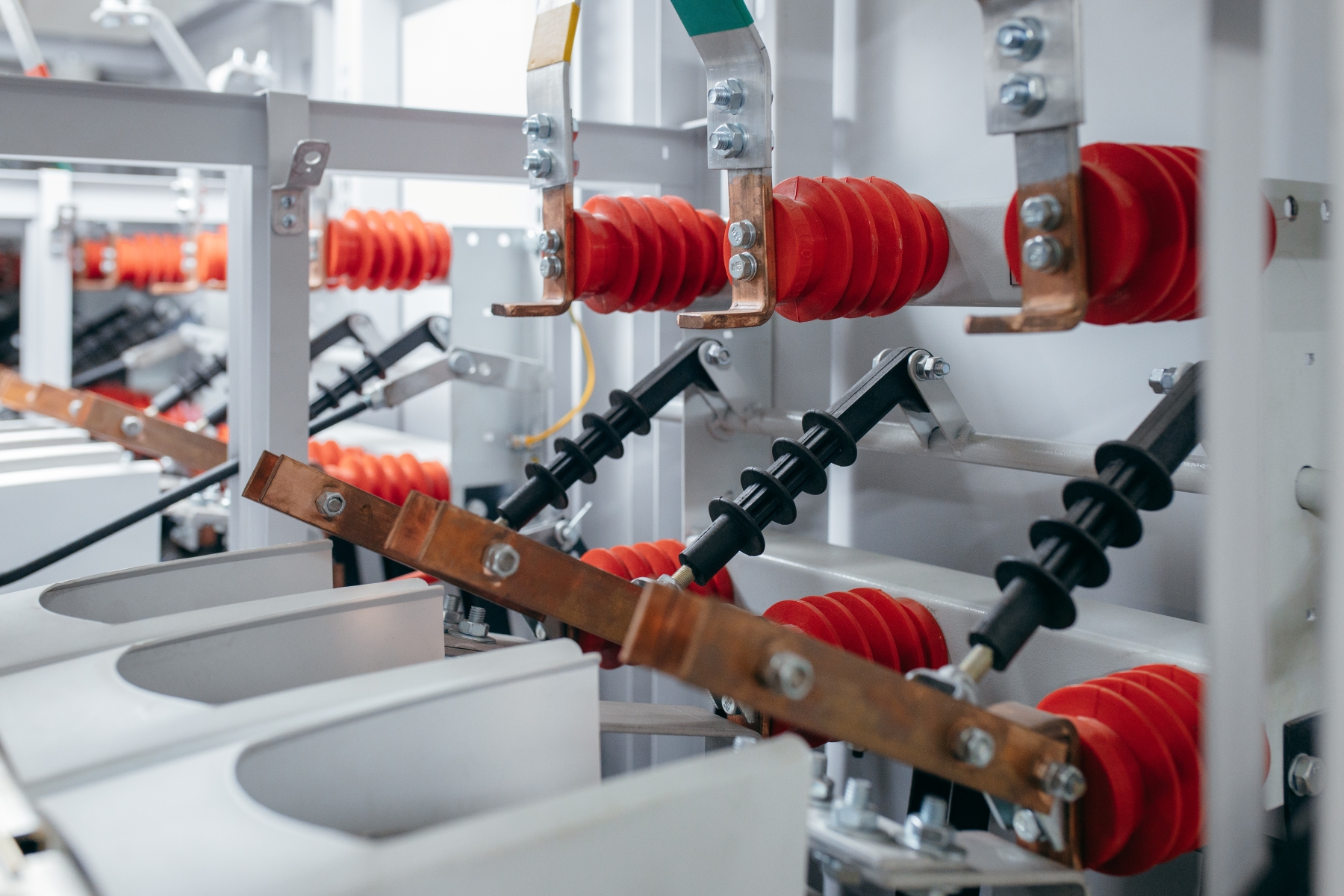

Busbar supports: Rigid insulating components that help support and separate energized conductors.
Transformer components: Insulating and structural components used within transformer assemblies and related equipment.
Terminal boards: Machined laminate components that provide electrical isolation and mechanical support.
Insulating mounting panels: Rigid panels used to mount and support components while providing electrical isolation.
Spacers and standoffs: Precision-machined components used to maintain separation and positioning.
Gears and wear components: Selected grades can be machined into mechanical components where toughness and wear characteristics are important.
Washers and bushings: Machined parts used for insulation, spacing, wear, and mechanical support.

Frequently Asked Questions

Below are some commonly asked questions about industrial laminates and how they perform in various environments.

Phenolic laminates typically use paper or fabric reinforcement with phenolic resin and are available in grades optimized for properties such as machinability, toughness, wear, or electrical performance. Glass-reinforced epoxy grades generally provide higher mechanical strength and strong electrical insulating performance, but the best choice depends on the application.

Phenolic paper laminate combines the mechanical strength needed to support electrical components with the dielectric properties required to electrically isolate them. Unlike wood, it resists moisture absorption, offers more consistent electrical performance, and maintains dimensional stability over time. Compared to metal, it provides electrical insulation without requiring additional insulating components.

Yes, phenolic is an excellent electrical insulator. It offers high dielectric strength, low conductivity, and reliable performance in high-voltage and high-temperature environments, making it ideal for electrical panels, switchgear, and insulating components.

Yes, phenolic is considered an industrial laminate, but not all industrial laminates are phenolics. While phenolic laminates are among the most common, industrial laminates can also be made with other resins such as epoxy, melamine, silicone, or polyester, depending on the application. Each type offers different performance characteristics like higher heat resistance, better chemical resistance, or enhanced electrical properties.

Paper grade phenolics (NEMA X, XX, XXX) offer excellent electrical insulation and are ideal for light mechanical uses, while cotton grade phenolics (NEMA C, CE, L, LE) provide greater mechanical strength, impact resistance, and better wear performance for demanding structural applications.

Phenolic material is made by layering paper, cotton fabric, or other substrates with phenolic resin, then curing it under heat and pressure to create a strong, rigid thermoset plastic. The result is a durable material known for its excellent electrical insulation, mechanical strength, and chemical resistance.

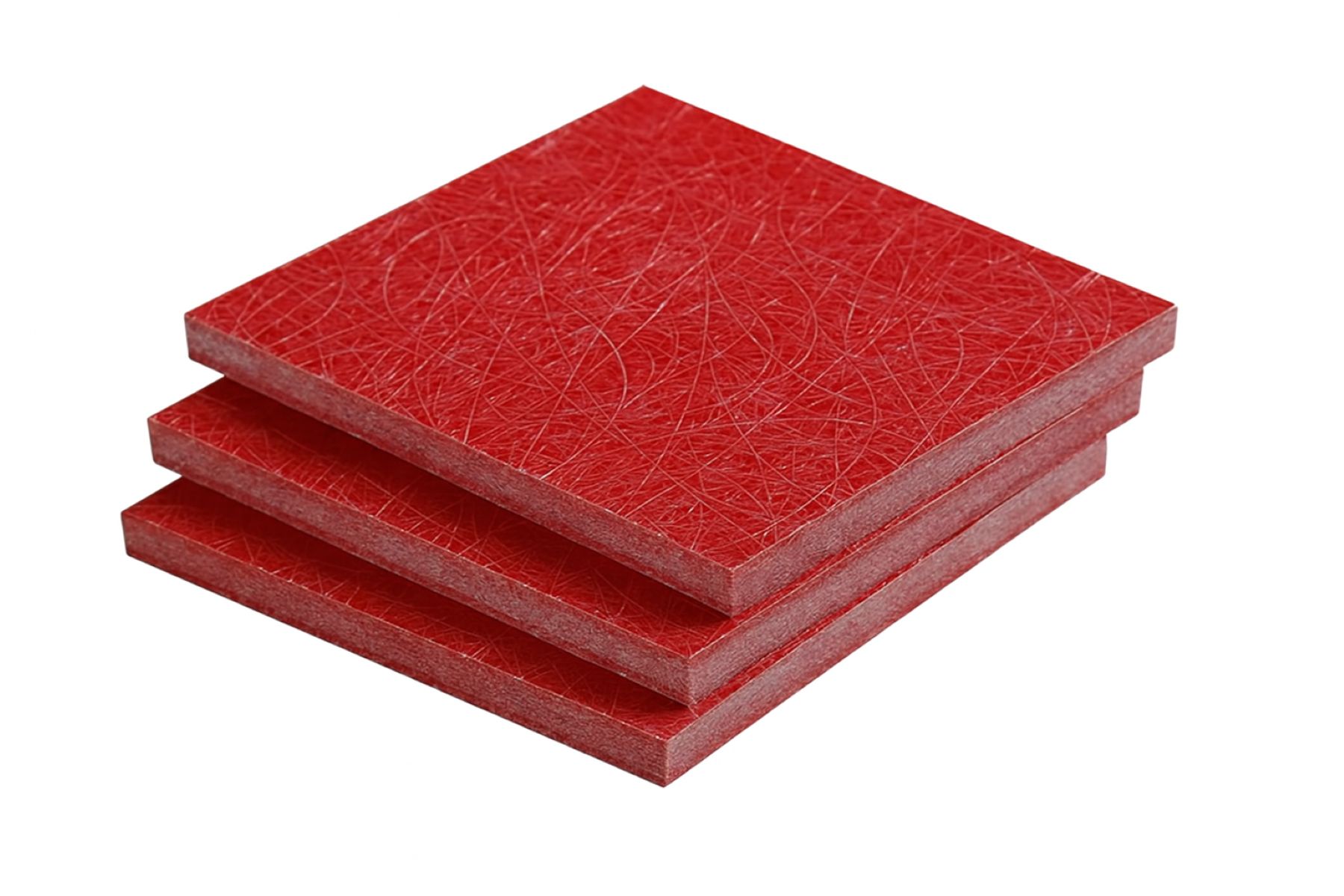

GPO-3 is a glass mat-reinforced thermoset polyester laminate known for its excellent electrical insulation, flame resistance, and mechanical strength. It's commonly used in electrical and industrial applications.

Yes, both G10 and FR4 materials exhibit low moisture absorption and excellent resistance to humidity. This makes them ideal for use in environments with high moisture or condensation, such as marine, outdoor, or HVAC applications.

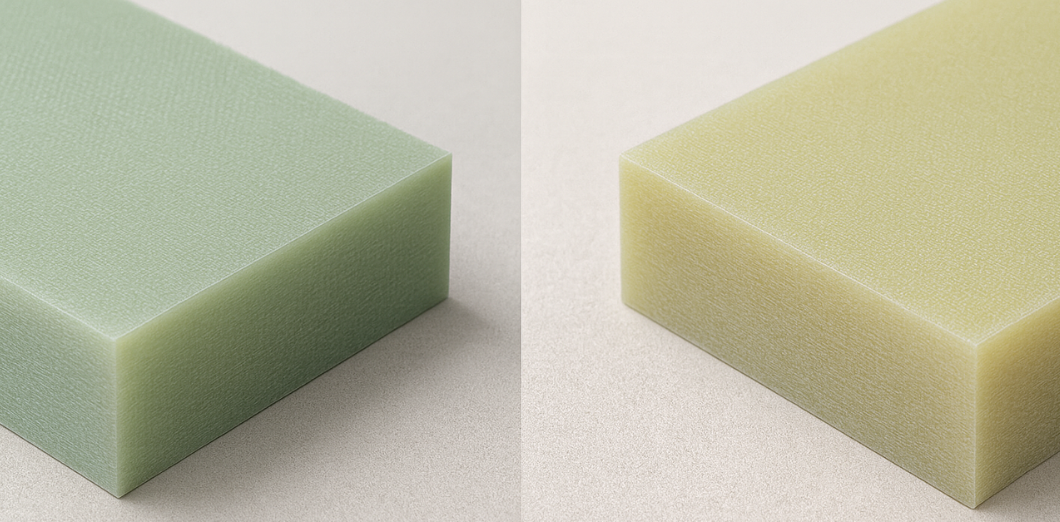

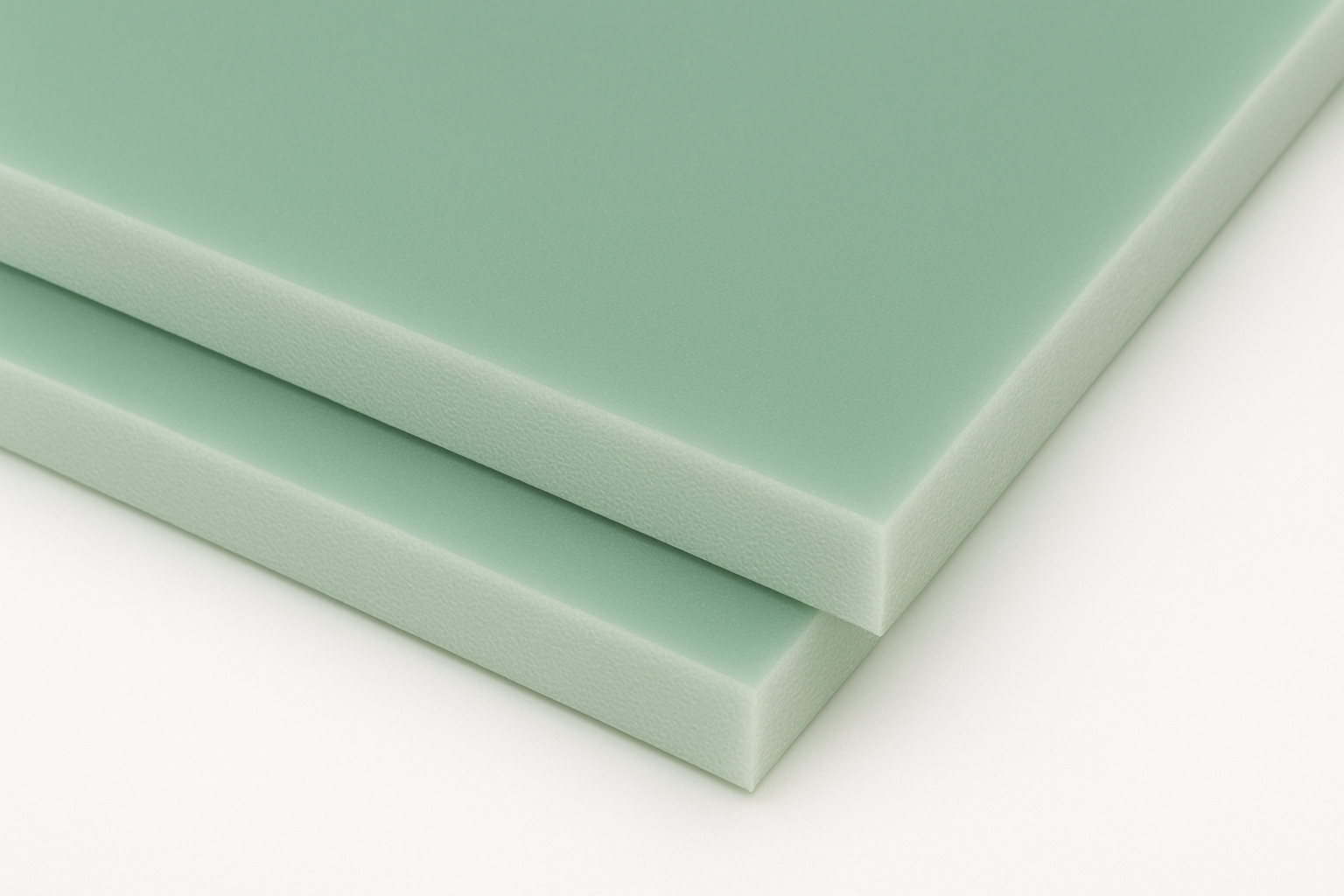

G10 and FR4 are both high-pressure laminate materials made with woven glass fabric and epoxy resin. The key difference is that FR4 is flame retardant, meeting the UL94 V-0 fire safety standard, while G10 is not.

GPO-3 uses polyester resin with chopped glass mat and is flame-retardant (UL 94 V-0), ideal for electrical insulation and structural applications. G10 uses epoxy resin with woven fiberglass cloth, offering higher strength and moisture resistance but no flame rating. GPO-3 is best for switchgear and enclosures; G10 is preferred for PCBs and precision parts.

Piedmont Plastics is a trusted G10 and FR4 supplier with branches nationwide. Find your nearest location to order G10/FR4 laminates for your project.

Yes, their resistance to moisture and environmental factors makes them suitable for certain outdoor applications.
