PEEK (Polyetheretherketone)

High-performance plastic sheet, rod, and tube for demanding applications.

PEEK (polyetheretherketone) sheet, rod, and tube deliver superior strength, chemical resistance, and thermal stability for aerospace, medical, and industrial applications.

  • Fabrication Support

    Cut-to-Size, Routing

  • Local

    Inventory Stocking

  • National

    Inventory Access

No store found.

Product Overview

Performance Characteristics:

  • Autoclavable
  • Easy To Machine
  • Chemical Resistant
  • Good Dimensional Stability
  • Good Electrical Insulation
  • Weatherable
  • High Temperature
  • Impact Resistant
  • Low Temperature
  • Hydrolysis Resistant
  • Strong and Stiff
  • Wear Resistant
  • Abrasion Resistant
  • Moisture Resistant
  • Typical Properties of PEEK (Polyetheretherketone)

    Common Properties

    • Common Brand Names TECAPEEK®, Ketron®, SustaPEEK, Semitron™
    • Typical Thickness Size 0.04 - 4 inches
    • Typical Lengths 12 - 48 inches
    • Typical Widths 12 - 24 inches
    • Friendly Names PEEK Plastic, Polyetheretherketone
    • Common Profiles Sheet, Rod, Tube
    • Typical Rod Diameters 0.25 - 6 inches
    • Typical Rod Lengths 3 - 5 feet
    • Typical Tube Diameter 30 – 210 mm

    Physical Properties

    • Density 1.2g/cm³
    • Water Absorption 0.2%
    • Moisture Absorption at Equilibrium 0.15%
    • Linear Mold Shrinkage 0.005mm/mm
    • Melt Flow 12g/10 min

    Electrical Properties

    • Dielectric Strength 160-220kV/mm
    • Dielectric Constant 3.2-3.4
    • Dissipation Factor 0.001-0.003
    • Volume Resistivity 10^16ohm·cm
    • Surface Resistivity 10^16ohm/sq
    • Arc Resistance 120-160secs
    • Comparative Tracking Index (CTI) 150volts
    • Electrostatic Discharge (ESD) Sensitivity Moderate

    Mechanical Properties

    • Hardness, Rockwell R 126Rockwell R
    • Tensile Strength, Ultimate 90MPa
    • Tensile Strength, Yield 70MPa
    • Elongation at Break 20%
    • Elongation at Yield 6%
    • Modulus of Elasticity 3.6GPa
    • Flexural Yield Strength 120MPa
    • Flexural Modulus 4.2GPa
    • Compressive Yield Strength 118MPa
    • Bearing Yield Strength 137MPa
    • Shear Strength 80MPa
    • Izod Impact, Notched 53J/m
    • Izod Impact, Unnotched 800J/m
    • Gardner Impact 27J
    • Falling Dart Impact 28J
    • Instrumented Impact Total Energy 49J/m

    Thermal Properties

    • CTE, linear 47.0um/m/°C
    • CTE, linear, Transverse to Flow 150.0um/m/°C
    • Deflection Temperature at 0.46 MPa (66 psi) 160.0°C
    • Deflection Temperature at 1.8 MPa (264 psi) 152.0°C
    • Vicat Softening Point 325.0°C
    • Flammability V-0UL94
    • Max Continuous Operating Temperature in F 500.0°F
    • Minimum Operating Temperature in F -148.0°F
    • Thermal Conductivity 0.25W/m·K

    Regulations

    • UL-94 Flame Class
    • FDA
    • NSF
    • USP Class VI
    • FAR 25.853 Flammability
    • D635 Self Extinguishing
    • RoHS Compliant
    • REACH Compliant

    Literature and Data Sheets

    • All Suppliers
    • Mitsubishi Chemical Advanced Materials
    • Röchling Engineering Plastics
    • Ensinger

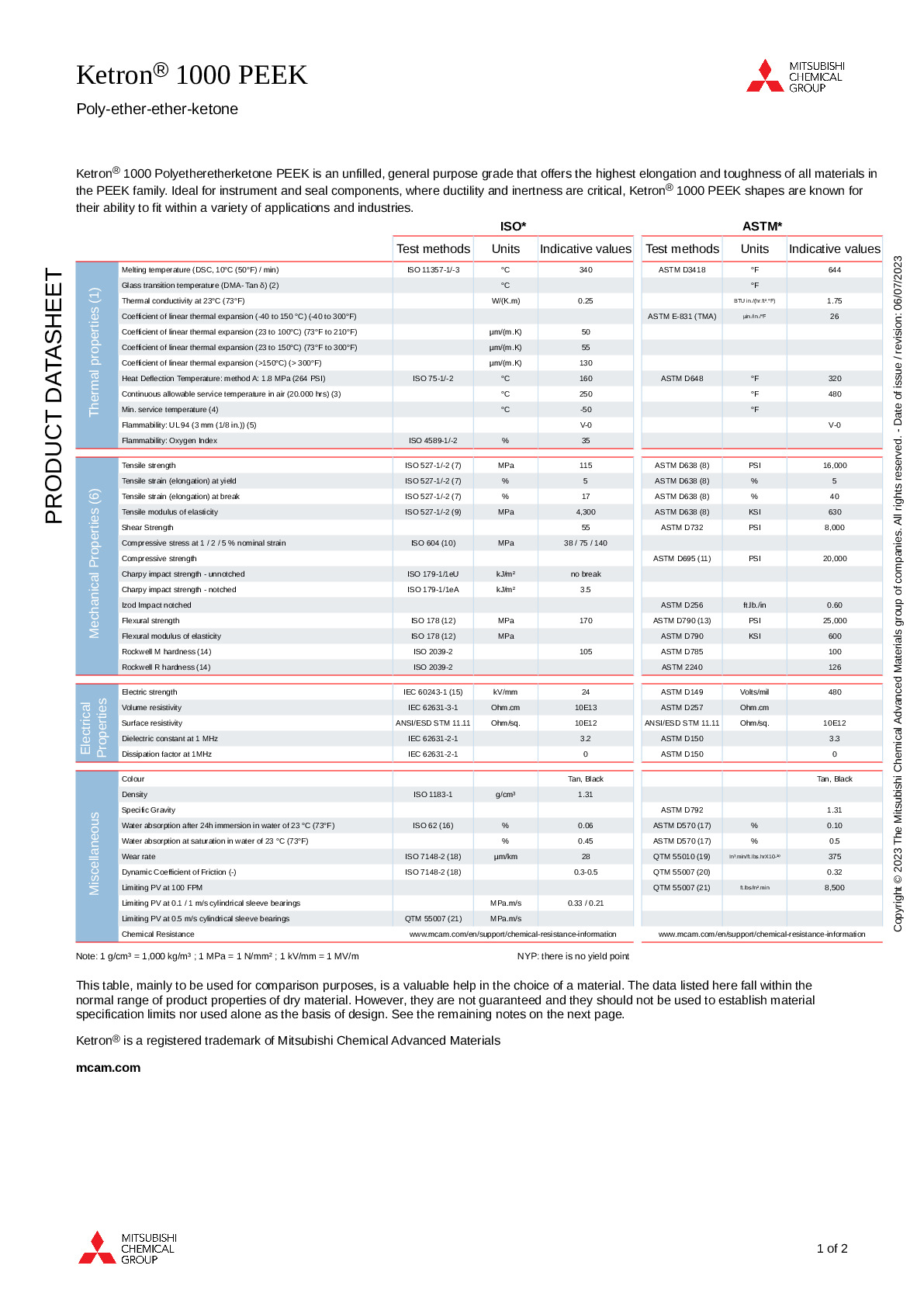

    • Ketron 1000 PEEK Mitsubishi Chemical Advanced Materials
      View

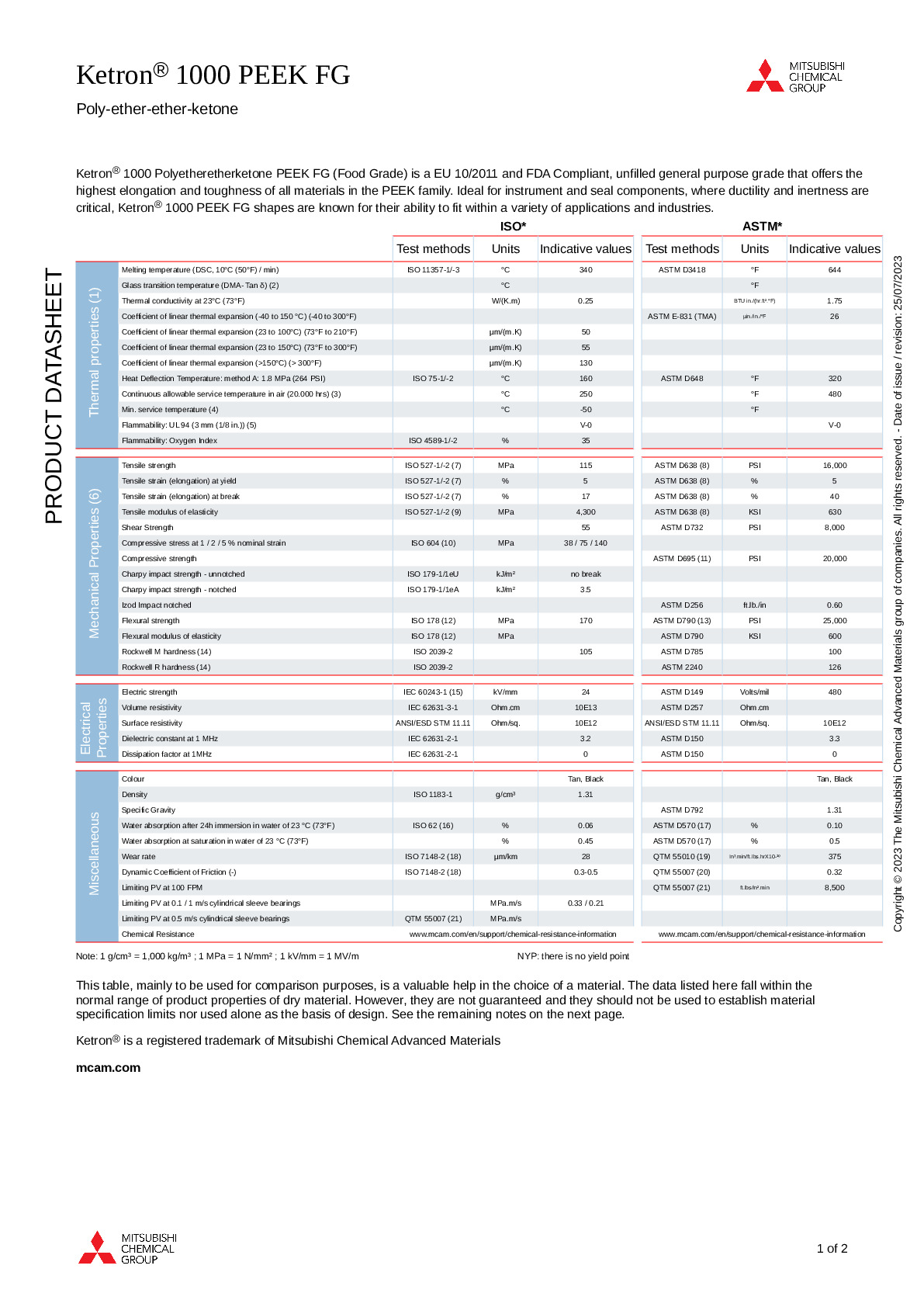

    • Ketron 1000 PEEK FG Mitsubishi Chemical Advanced Materials
      View

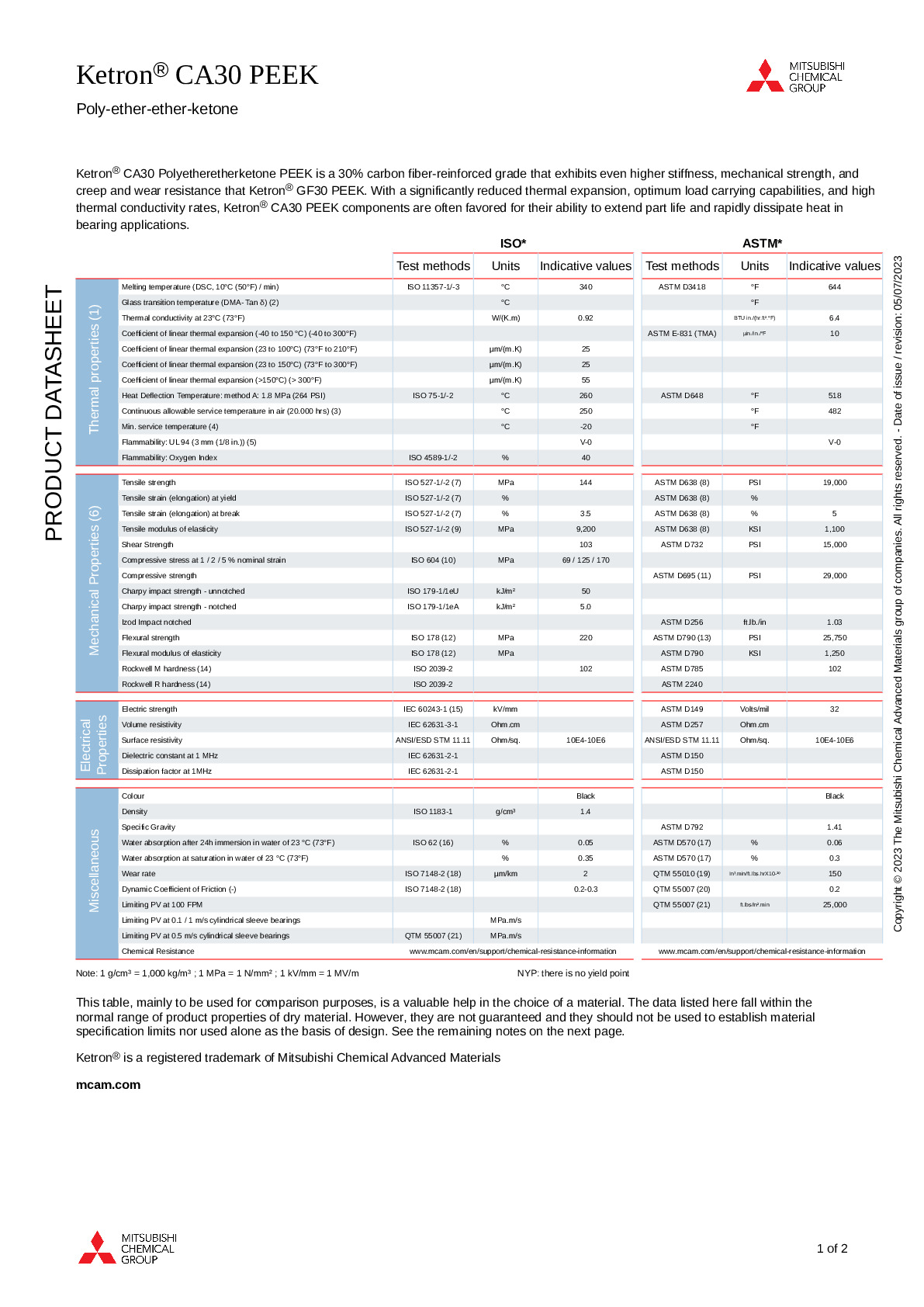

    • Ketron CA30 PEEK Mitsubishi Chemical Advanced Materials
      View
    • Ketron GF30 PEEK Mitsubishi Chemical Advanced Materials
      View
    • Ketron HPV PEEK Mitsubishi Chemical Advanced Materials
      View

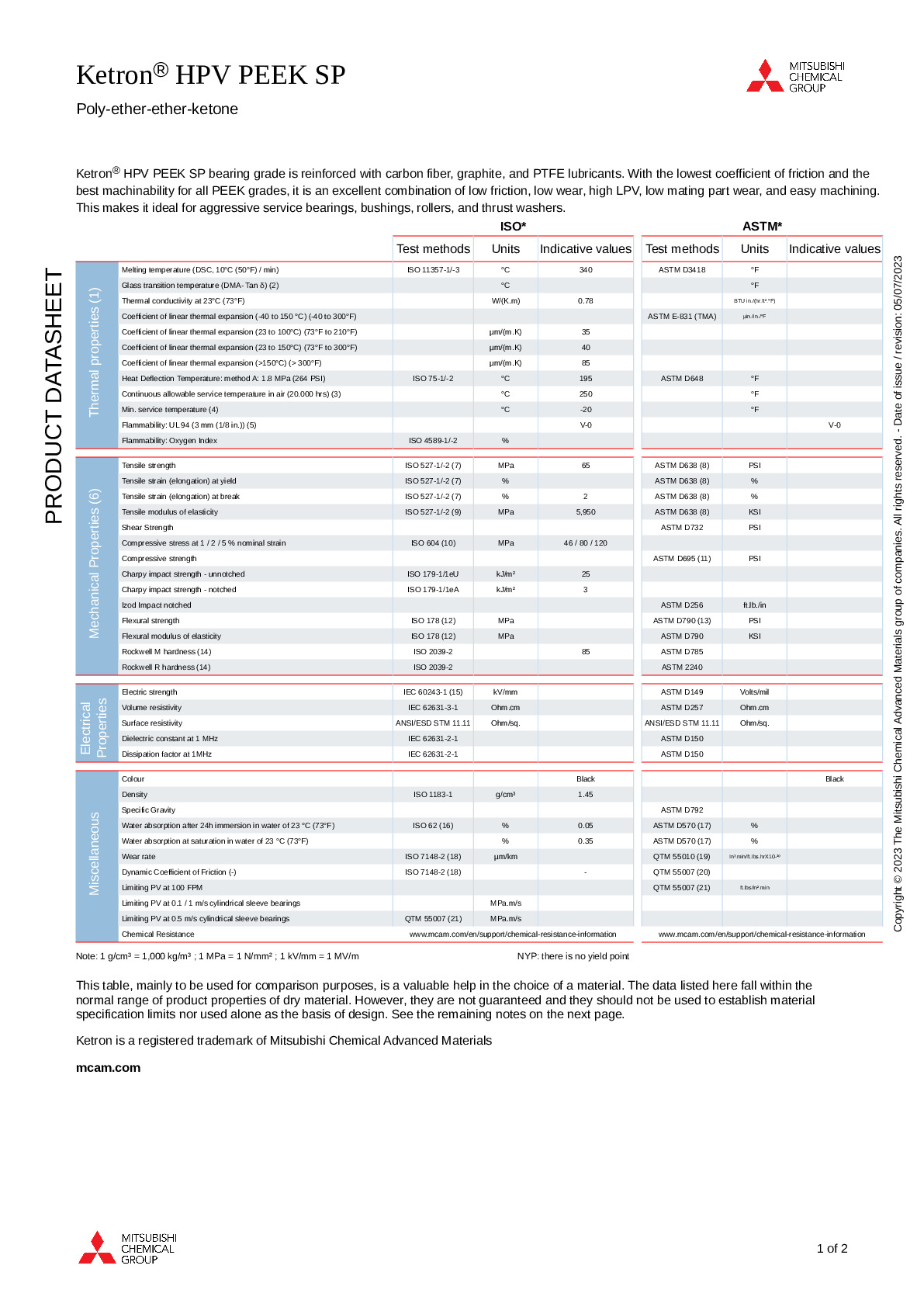

    • Ketron HPV PEEK SP Mitsubishi Chemical Advanced Materials
      View

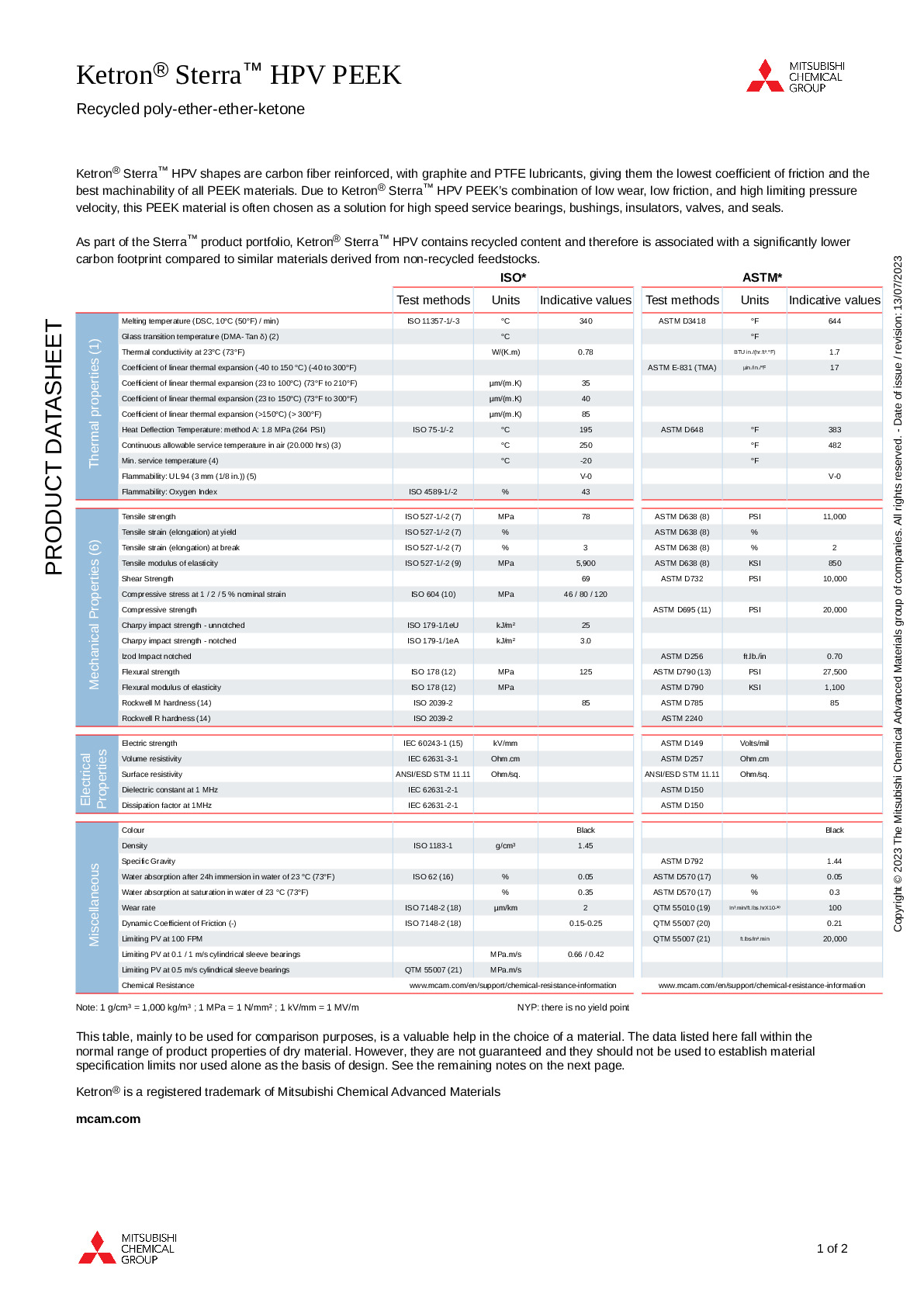

    • Ketron Sterra HPV PEEK Mitsubishi Chemical Advanced Materials
      View

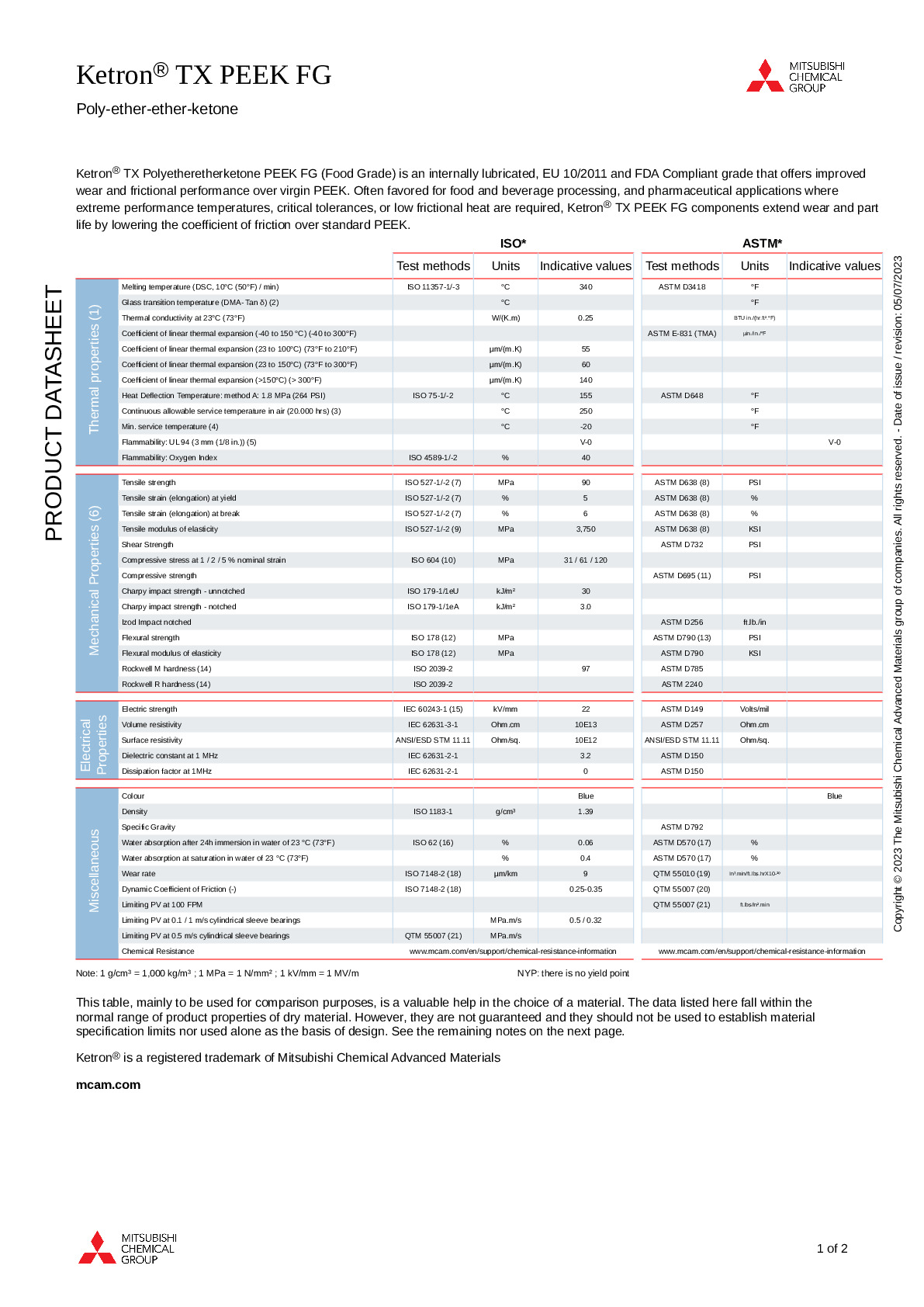

    • Ketron TX PEEK FG Mitsubishi Chemical Advanced Materials
      View

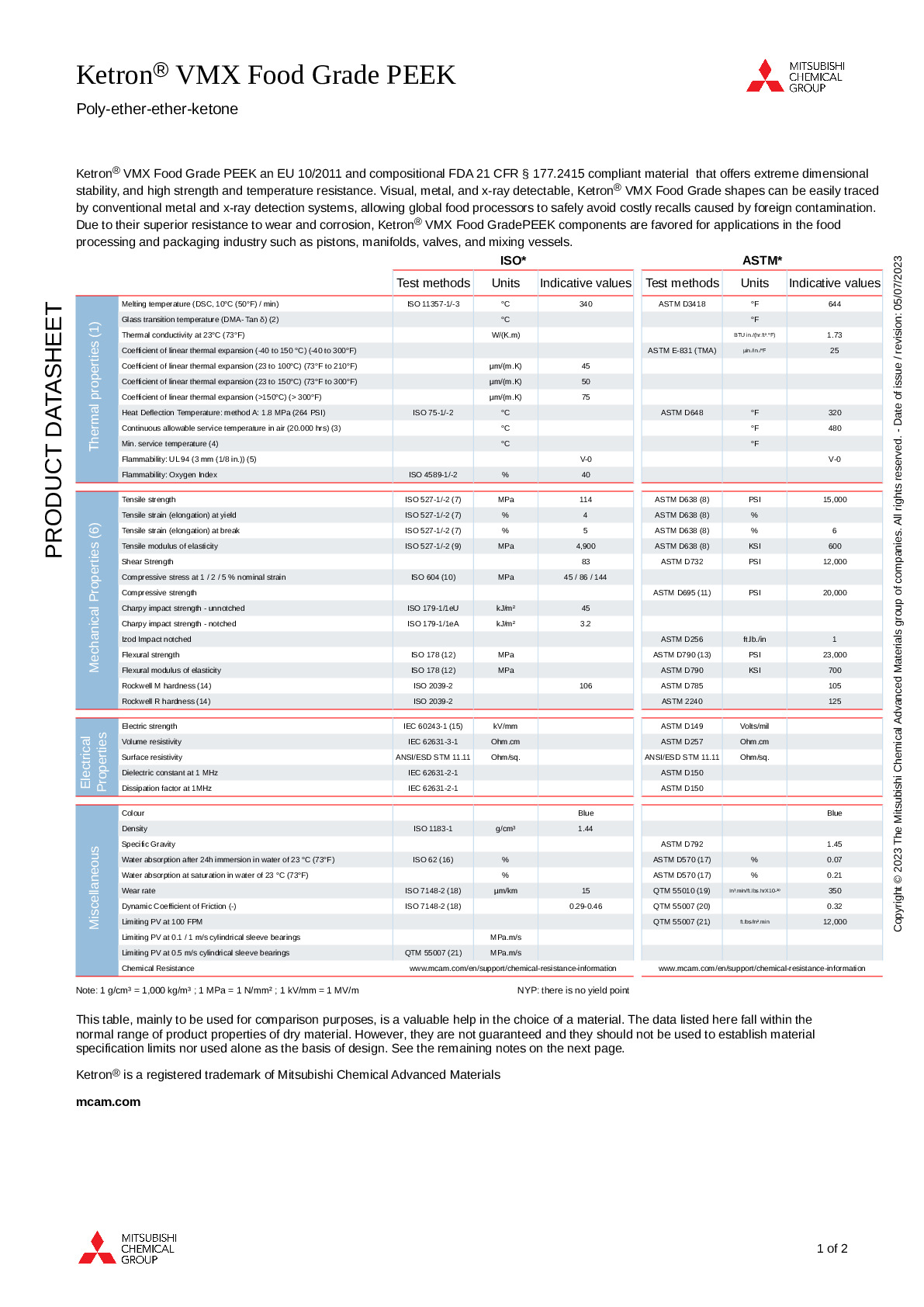

    • Ketron VMX Food Grade PEEK Mitsubishi Chemical Advanced Materials
      View
    • MCAM Ketron® GF 30 PEEK Helicopter Bearing Cage - AS9100 rev D Compliant Plastic Shapes Mitsubishi Chemical Advanced Materials
      View
    Showing 10 out of 22 items

    Get a Quote for PEEK at Piedmont Plastics

    PEEK, short for polyetheretherketone, is one of the highest-performing thermoplastics available today. Offered in sheet, rod, and tube, PEEK provides exceptional strength, stiffness, and wear resistance, along with outstanding thermal and chemical stability. Its balance of mechanical performance and machinability makes it an ideal choice for demanding environments where other plastics fail.

    At Piedmont Plastics, we supply PEEK material to engineers, fabricators, and manufacturers across industries ranging from aerospace and automotive to medical and semiconductor. Contact us today to learn how PEEK can support your project requirements.

    An Expert is just around the corner.

    With over 100 years of combined product knowledge and industry experience, we are confident our plastics experts can help you find a solution for your application.

    Key Features of PEEK

    PEEK is engineered to maintain reliable performance under extreme conditions. Its key properties include:

    • Excellent mechanical strength and stiffness

    • High temperature resistance (up to 480°F continuous use)

    • Outstanding chemical resistance, even against aggressive solvents

    • Low moisture absorption for dimensional stability

    • Superior wear and abrasion resistance

    • Excellent electrical insulating properties

    • Easy to machine into precision components

    Benefits and Advantages

    Choosing PEEK plastic means investing in a material that reduces downtime, increases reliability, and extends service life. Its resistance to heat, chemicals, and wear makes it a cost-effective solution for long-term performance.

    Common Applications

    PEEK is trusted in industries that demand uncompromising performance:

    • Aerospace components: lightweight, high-strength parts for extreme environments

    • Medical devices: biocompatible and sterilization-resistant components

    • Semiconductor equipment: low outgassing and chemical resistance for cleanroom use

    • Automotive parts: durable components for engines, transmissions, and fuel systems

    • Oil and gas: seals, valve seats, and wear rings exposed to high pressures and chemicals

    • Electrical and electronic: insulating parts for high-voltage applications

    Frequently Asked Questions

    Below are some commonly asked questions about PEEK plastic and its variations:

    PEEK is available in sheet, rod, and tube to suit a variety of machining and fabrication needs.

    Yes. Certain grades of PEEK are engineered for medical use, providing biocompatibility and resistance to sterilization methods. Contact your Piedmont Plastics sales representative to discuss the best option for your specific application requirements.

    These are reinforced grades of PEEK designed to improve stiffness, strength, and wear resistance for more demanding applications.

    While PTFE excels in low-friction performance, PEEK offers significantly higher strength, stiffness, and thermal stability.

    Piedmont Plastics offers a wide selection of PEEK sheet, rod, and tube materials. With more than 50 locations across North America, we’re ready to supply the exact size and grade you need.

    Why Buy from Piedmont Plastics?

    Piedmont Plastics is your trusted source for high-performance plastics like PEEK. Partnering with us means more than purchasing material; you gain a dependable solutions provider committed to your success.

    • Nationwide network of branches: Local inventory and quick delivery across North America.

    • Custom cutting and fabrication services: Tailored solutions to match your exact specifications.

    • Deep industry expertise: Knowledgeable staff to guide material selection and applications.

    • Wide product selection: One-stop access to engineering plastics, composites, and specialty materials.
