What is GPO-3?

GPO-3 is a high-performance, fiberglass-reinforced thermoset laminate widely used in electrical and industrial applications. Known for its excellent arc resistance, flame retardancy, and mechanical strength, GPO-3 is the material of choice for busbar insulation, switchgear housings, and other high-voltage systems. Available in sheet and rod form, it is ideal for environments that demand reliable electrical insulation and dimensional stability under stress.

In this article, we’ll explore what GPO-3 is, how it compares to FR4, and why it’s trusted by engineers, purchasers, and maintenance professionals in demanding industries.

An Expert is just around the corner.

With over 100 years of combined product knowledge and industry experience, we are confident our plastics experts can help you find a solution for your application.

GPO-3 Explained

GPO-3 (or GPO3) is a glass mat-reinforced, thermoset polyester laminate that offers a unique balance of electrical, mechanical, and thermal performance. It is often referred to by the brand name Glastic®, one of the original trade names under which this material was commercialized.

Manufactured by impregnating fiberglass mats with a polyester resin and curing it under heat and pressure, GPO-3 is classified as a UL 94 V-0 flame-retardant material and complies with NEMA GPO-3 standards.

Common forms include:

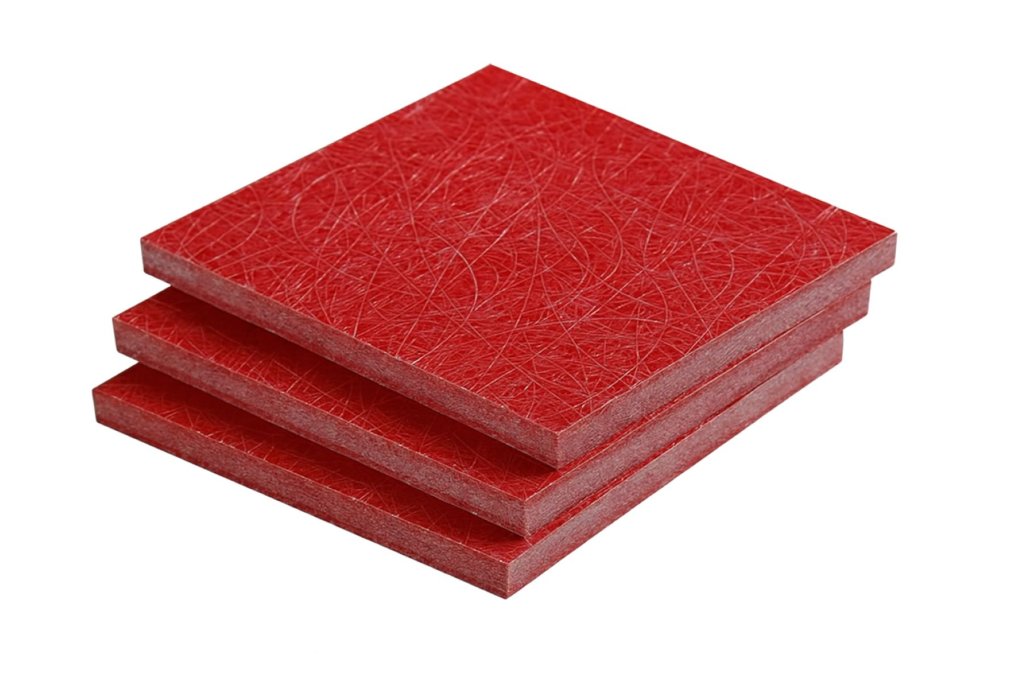

  • GPO3 Fiberglass Sheet: Flat panels for electrical insulation and structural applications

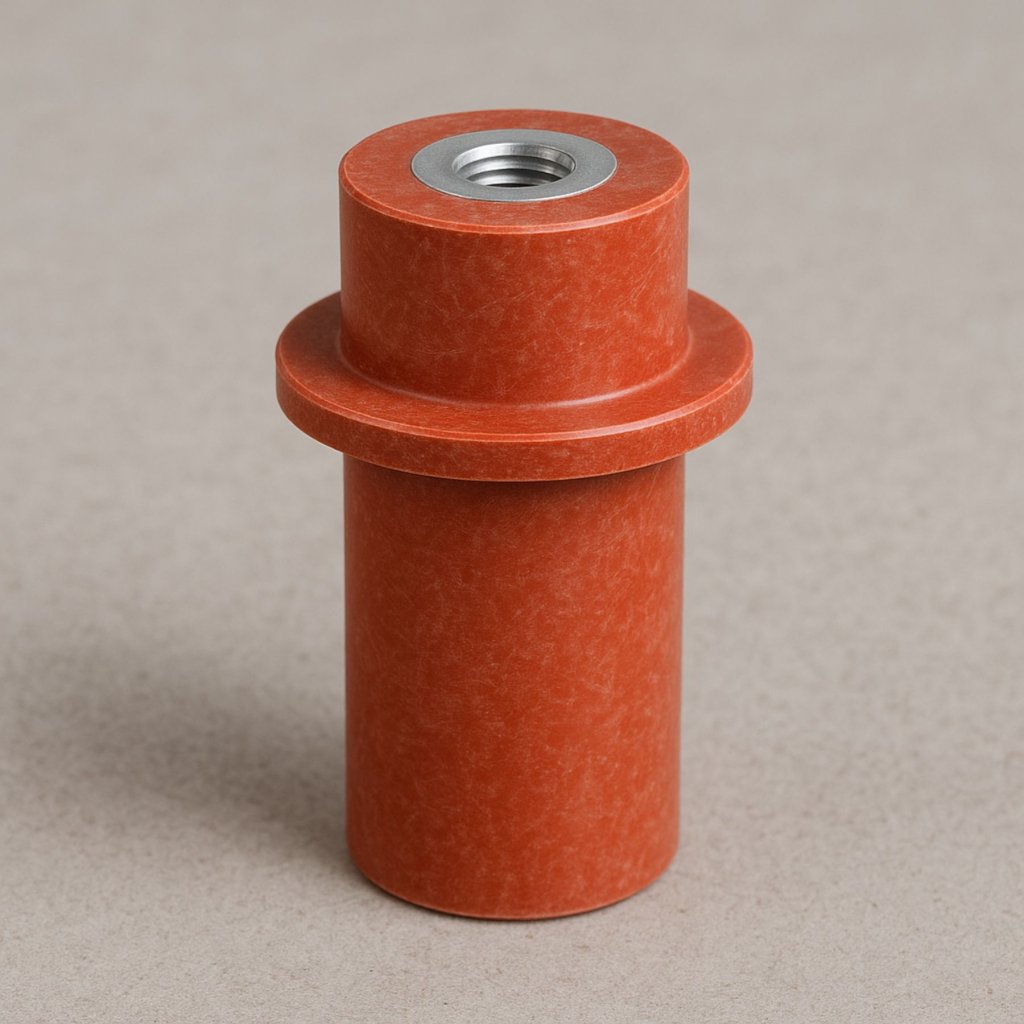

  • GPO3 Rod: Used for standoffs, spacers, and turned parts

  • GPO3 Laminate: Custom-machined plates for structural or thermal isolation

Key Material Properties

Electrical Insulation

  • Dielectric strength: Typically exceeds 300–500 volts/mil, depending on thickness
  • Tracking and arc resistance: Rated excellent per ASTM D495
  • UL 94 V-0 flame rating: Meets stringent fire safety requirements

Thermal Performance

  • Continuous operating temperature: Up to 265°F (130°C), with short-term peaks higher
  • Thermal endurance: Maintains properties even under thermal cycling
  • Low thermal conductivity: Helps isolate heat in electrical assemblies

Mechanical Strength

  • Flexural strength: ~20,000 psi (ASTM D790)
  • Compressive strength: ~30,000 psi (ASTM D695)
  • Impact resistance: Good shock and vibration performance due to mat reinforcement

Dimensional Stability

  • Low water absorption: ~0.1–0.25% by weight
  • Resists warping or swelling even in humid or outdoor conditions
  • Stable across wide temperature and voltage gradients

Chemical Resistance

  • Resistant to oils and lubricants, mild acids and alkalis, and most cleaning solvents
  • Suitable for use in industrial washdown and chemical handling environments

This data is based on averages and may not relate to your specific product specs. Please contact your Piedmont Plastics sales representative for the most accurate technical data.

Applications & Use Cases

GPO‑3 is commonly used in electrical, industrial, and power distribution systems due to its excellent arc resistance, dielectric strength, and flame-retardant properties. Here are the most common applications:

  • Busbar insulation barriers
  • Arc chutes and arc barriers
  • Switchgear insulation panels
  • Electrical panelboard backers
  • Terminal blocks and standoffs
  • Transformer coil supports
  • Motor control center panels
  • Mounting brackets and structural supports
  • Insulating spacers and washers
  • Arc flash isolation panels
  • And more!
  • GPO-3 vs FR4: How Do They Compare?

    While GPO-3 and FR4 are both fiberglass-reinforced laminates, they serve very different roles. Here’s a breakdown of how they compare:

    Property GPO-3 FR4
    Reinforcement Fiberglass Woven Fiberglass cloth
    Resin System Polyester Epoxy
    Dielectric Strength Higher in thicker sections Good across thicknesses
    Arc Resistance Excellent Moderate
    Mechanical Strength Very high compressive & flexural High tensile, less copressive
    Moisture Resistance Very low absorption Moderate
    Thermal Resistance Higher Temperature resistance Typically rated to ~130°C
    Machinability Easy Brittle, prone to edge chipping
    Contact your Piedmont Plastics sales representative for specific technical data.

    Choosing the Right GPO-3 Material

    When specifying GPO-3 for your project, consider the following:

    • Thickness requirements: Thicker sheets provide higher dielectric and mechanical strength.

    • Form factor: Choose sheet, rod, or laminate based on final part geometry.

    • Certifications: Look for materials rated to UL 94 V-0 and compliant with NEMA GPO-3.

    • Machining capacity: Discuss your needs with a supplier who can offer cut-to-size or CNC-prepped blanks.

    Need help determining what GPO-3 format is right for your project? That’s where we come in.
